CPI TL12UO

About

The CPI TL12UO is a SuperLinear Compact High Power Outdoor Unit (SL CHPA ODU) designed for satellite communication earth stations, satellite news-gathering vehicles, and flyaway applications, in the Ku-Band frequency range.

Key Features

  • Detailed monitoring of metrics: Monitor different types of metrics, such as the RF output, reflected RF output power, voltage and current for the heater and the helix, etc.
  • Consult log information: Retrieve specific log entries from the device directly in DataMiner.
  • Alarm monitoring: Monitor different types of alarms, such as the Main Controller BBRAM Fault, System Fault, BIPA State, etc.

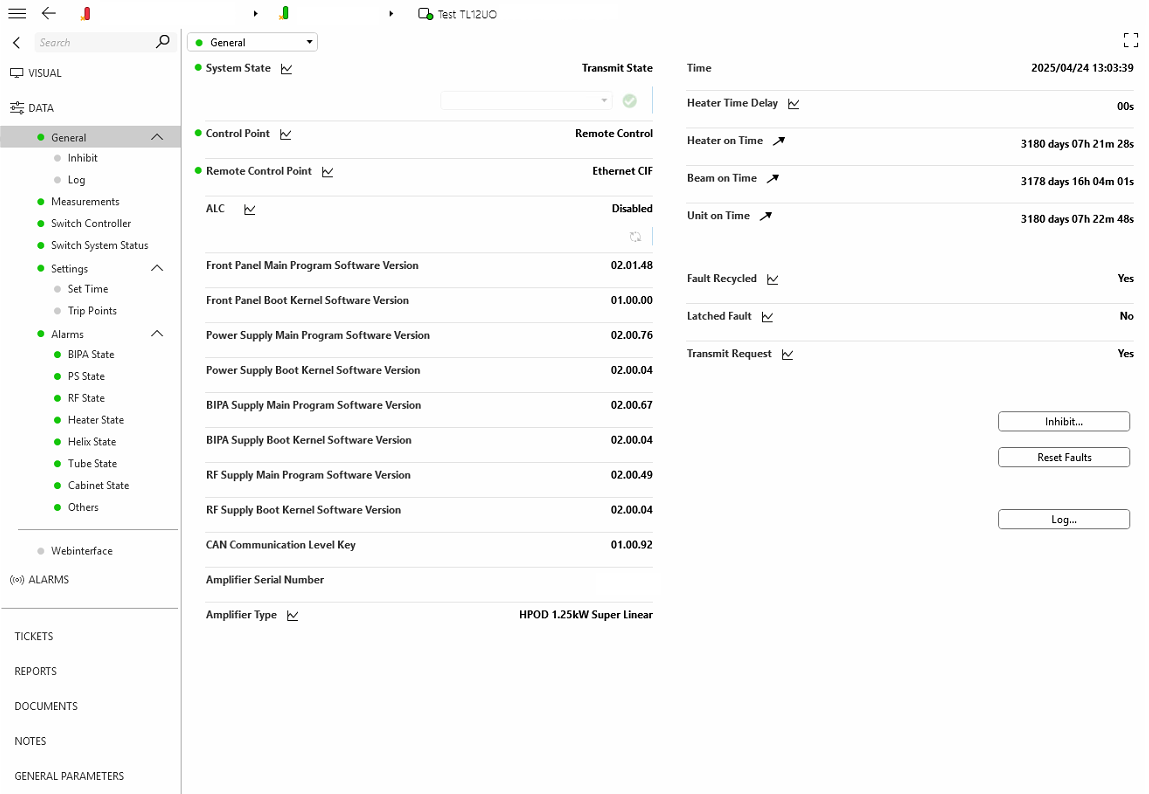

CPI TL12UO Overview

Technical Reference

This connector is intended to communicate with the device using serial commands as described in the device's manual. For more information, refer to https://www.cpii.com/pe-amplifier-products/product/satcom-twtas-156/outdoor-twtas-ku-band-817.

Note

For detailed technical information about the connector, refer to our technical documentation.
