The SED 32x8 is a signal routing matrix device. This connector uses GPIB communication to monitor and configure the SED 32x8 matrix, providing real-time visibility on routing states, temperature status, and power conditions.

Key Features

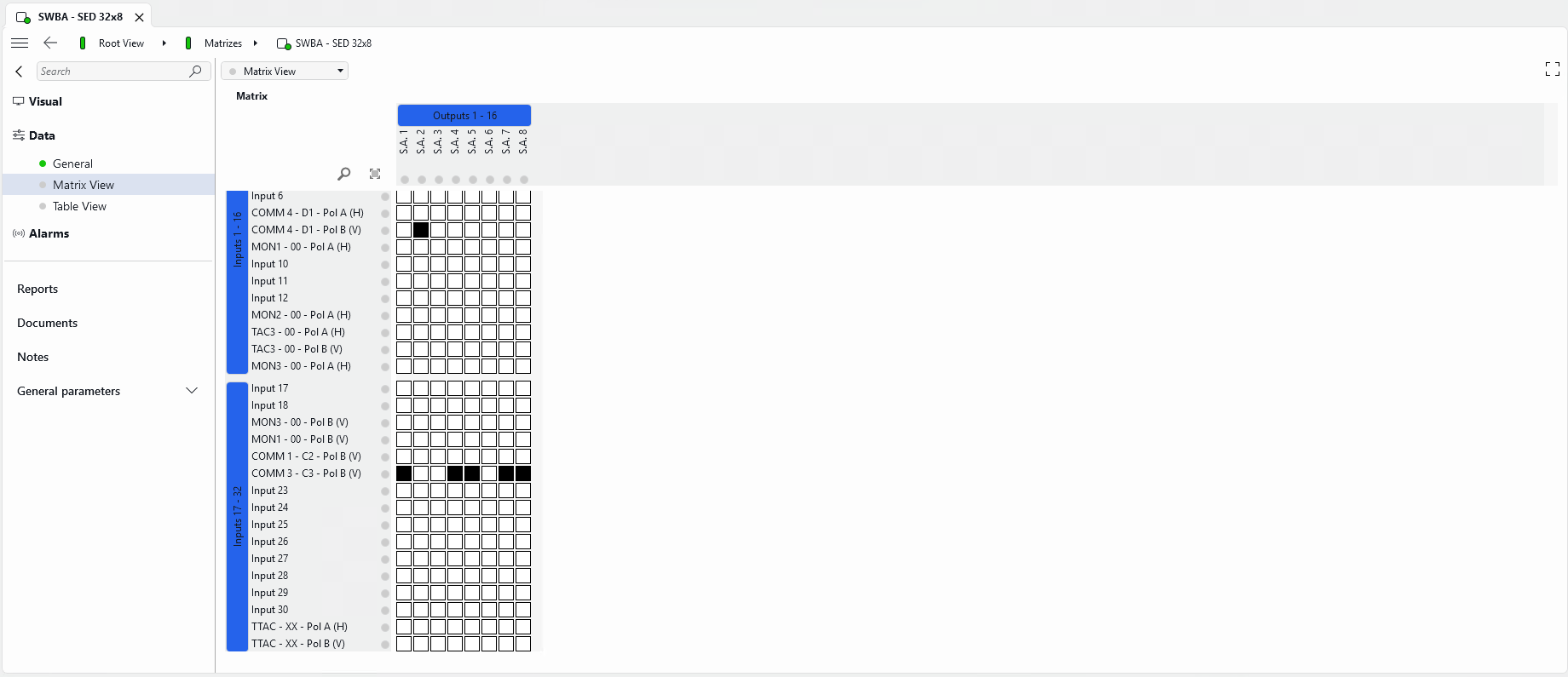

• Matrix monitoring: View and manage the full 32x8 signal routing matrix through a dedicated matrix view.

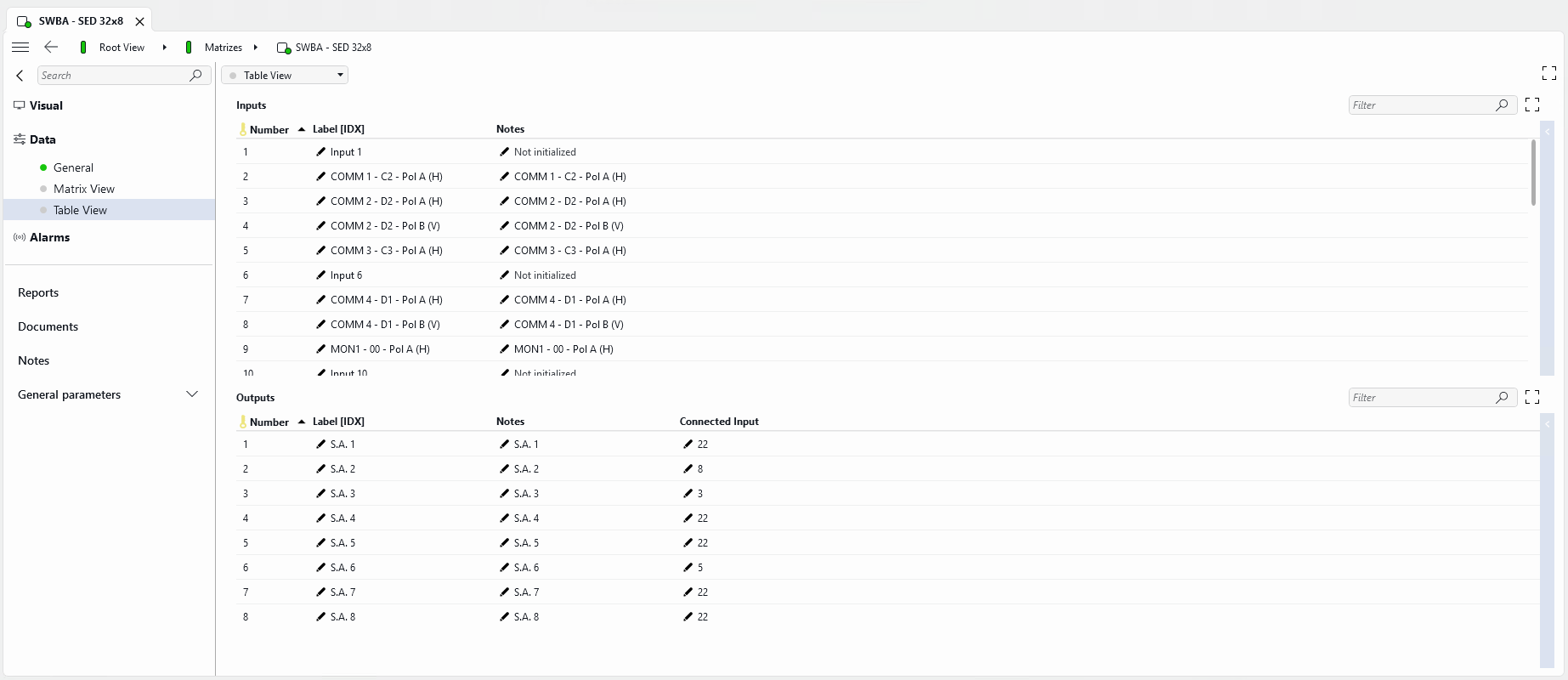

• Input/Output management: Access detailed input and output configuration through dedicated tables.

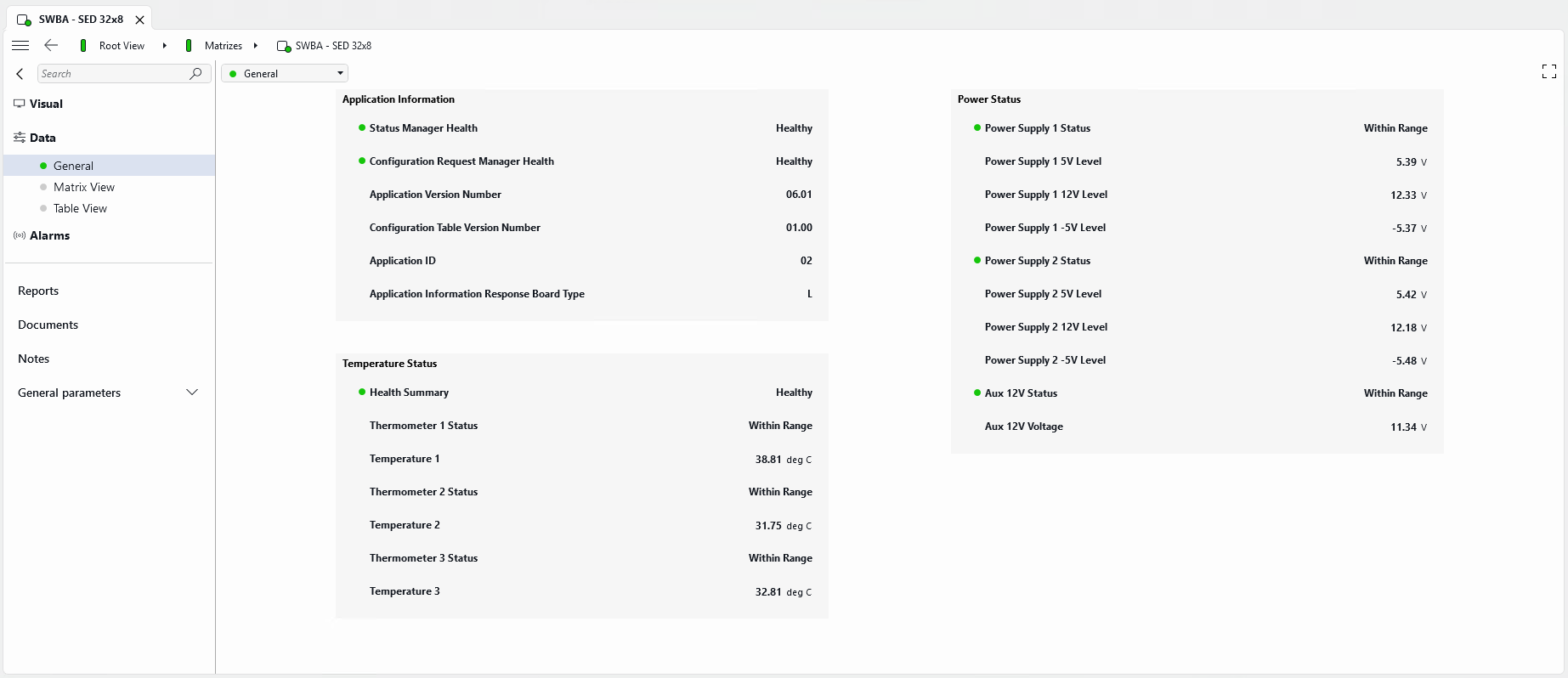

• Temperature monitoring: Track the device's thermal status to ensure safe operating conditions.
• Power monitoring: Monitor the power status to detect and respond to power-related issues.
• Application information: Retrieve and display device application information at a glance.

Use Cases

Centralized Monitoring and Control

Challenge: Broadcast engineers need a centralized way to monitor and control signal routing across a 32x8 matrix without manual on-site intervention.

Solution: Deploy the SED 32x8 connector in DataMiner to provide a live matrix view and full remote control over signal routing.

Benefit: Reduces the need for physical access to the device, enabling faster routing changes and improving operational efficiency.

Early Detection of Issues

Challenge: Operations teams need to be alerted to potential hardware failures caused by overheating or power anomalies before they result in signal loss.

Solution: Use the temperature and power supply status monitoring capabilities of the connector to continuously track device health.

Benefit: Early detection of thermal or power issues allows proactive maintenance and minimizes unplanned downtime.

Technical Reference

Prerequisites

• DataMiner version 10.5.0.0 - 15485 or higher is required to run this connector.
• A GPIB interface is required to establish communication with the device.

Note

For detailed technical information, refer to our technical documentation.
