GQI DxM Architecture

The GQI DxM consists of several processes that work together to handle GQI requests efficiently. Its architecture is designed for modularity, scalability, and effective communication between components.

Architecture

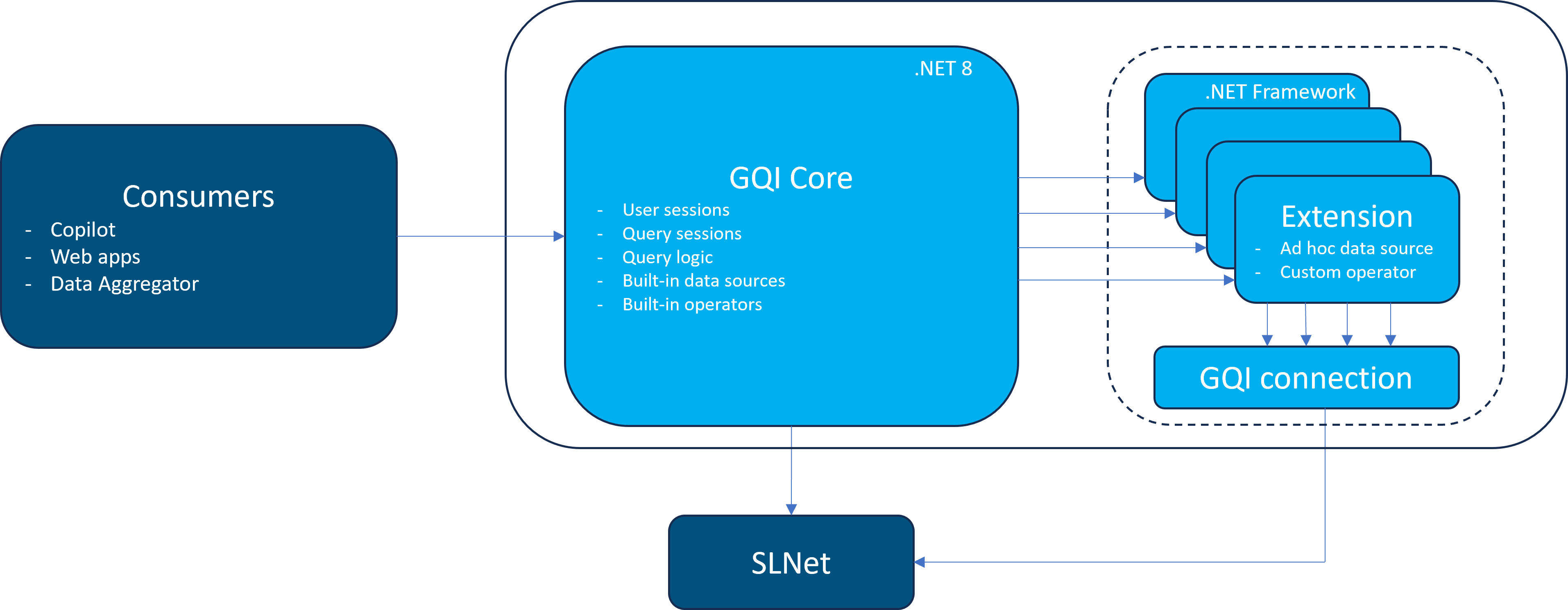

GQI process overview as of DataMiner 10.5.9

Core process

Process name: DataMiner GQI.exe (Windows Service)

This is the main entry point for all GQI operations. It manages core functionality including query sessions, built-in data sources and operators, and execution of query requests.

When a query uses GQI extensions (like ad hoc data sources or custom operators), the parent process spawns one or more child processes to handle those extensions.

  • Technology: .NET 8
  • Communication: Connects to the DataMiner Agent via gRPC (APIGateway)

Child processes

Process name: DataMiner GQI.ExtensionsWorker.Automation.exe

Each extension library runs in its own child process, providing isolation and modularity. You can identify which extension a child process is responsible for by checking the command line arguments in Task Manager.

  • Technology: .NET Framework 4

Communication process

Process name: DataMiner GQI.ExtensionsWorker.SLNet.exe

This process handles communication between GQI extensions and the DataMiner Agent using SLNet. All extensions for a given user share the same SLNet connection to optimize resource use.

  • Technology: .NET Framework 4
  • Communication: Connects to the DataMiner Agent via IPC (SLNet)
