Working with the EVS Cerebrum application
To access the application:
Go to
http(s)://[DMA name]/root.Select EVS Cerebrum to start using the application.
The EVS Cerebrum user interface
The UI of the EVS Cerebrum app consists of five main components:
Levels (1): All available levels for a selected destination, including the connected source, if applicable.
Categories (2): All existing categories applied to sources and destinations. Filtering of sources and destinations is based on the selected category.
Sources (3): All source mnemonics available in Cerebrum.
Destinations (4): All destination mnemonics available in Cerebrum. Each destination button indicates the connected source, if applicable.
Route connection buttons (5): Contains two buttons (Take and All Level Take) that allow you to start the route connection setup.
Establishing a route connection
To establish a route connection:
Select a source, destination, and level.
Click the Take button.
Once the route is established, the connected source will be visible on the designated destination and level(s).
To set up routes for all levels simultaneously, click the All level Take button.
To access an overview of the established route connections, navigate to the Routes page.
The Routes table lists each destination level along with its corresponding source level.
Note

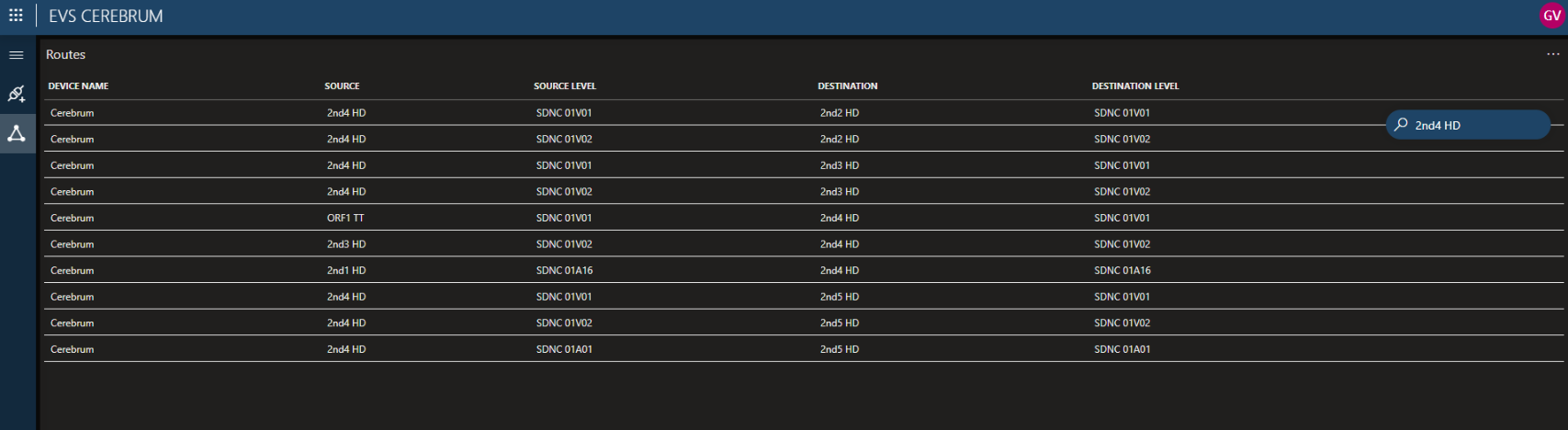

Hover the mouse pointer over the table to access easy filtering.
