Providing a custom sort order

In this tutorial, you will learn a technique that will allow you to implement a custom GQI column sort order using a custom operator.

This technique is available from DataMiner 10.4.5/10.5.0 onwards.

Expected duration: 15 minutes.

When do you need a custom sort order?

By default, every column in a GQI result can be sorted. However, because GQI is so generic, the sort order you use may not be suited for all types of data.

For example, a column containing text is sorted alphabetically by default, which is perfect for most use cases. However, it does not behave as desired when the values in that column are IP addresses:

IP address
127.0.0.1
19.10.53.4
192.168.11.1
192.168.7.1

In this case, the addresses would better be sorted by the value of their respective octets, like so:

IP address
19.10.53.4
127.0.0.1
192.168.0.1
192.168.11.1

This example will be used in the rest of the tutorial.

How will this be achieved?

You can define a custom sort order for the IP address column by implementing a custom operator that "redirects" the sort operation on one column to another.

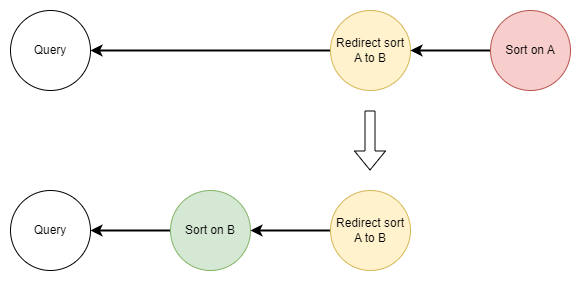

"Redirecting" a sort operator means changing an incoming sort operator in your query, and modifying it so it sorts on a different column. For example, if someone sorts a query on column A, you can intercept this with a custom operator to change it to a sort operation on column B.

For the IP address example, you can change the sort operation on the IP address column to another column that contains an "IP address ranking". This IP address ranking will be a column that, when sorted using the default GQI sort order, will result in the desired order for your IP address column.

Overview

• Step 1: Provide a column with the ranking
• Step 2: Create a new custom operator to redirect sort operations:
• Step 3: Provide column arguments
• Step 4: Provide the necessary dependencies
• Step 5: Implement the sort redirection on a high level
• Step 6: Implement the sort redirection details
• Step 7: Build a query using the new custom operator

Step 1: Provide a column with the ranking

Depending on the specific use case, the column might be readily available in the data source. However, in the example at hand, you can implement a new custom operator that will add a new column and fill it with a rank based on the IP address.

using Skyline.DataMiner.Analytics.GenericInterface;
using System.Net;

[GQIMetaData(Name = "Rank IP address")]
public sealed class IPAddressRanker : IGQIColumnOperator, IGQIRowOperator, IGQIInputArguments
{
    private readonly GQIColumnDropdownArgument _ipAddressColumnArg;
    private readonly GQIColumn<int> _ipAddressRankColumn;

    private GQIColumn<string> _ipAddressColumn;

    public IPAddressRanker()
    {
        _ipAddressColumnArg = new GQIColumnDropdownArgument("IP address")
        {
            Types = new[] { GQIColumnType.String },
            IsRequired = true,
        };
        _ipAddressRankColumn = new GQIIntColumn("IP address rank");
    }

    public GQIArgument[] GetInputArguments()
    {
        return new GQIArgument[] { _ipAddressColumnArg };
    }

    public OnArgumentsProcessedOutputArgs OnArgumentsProcessed(OnArgumentsProcessedInputArgs args)
    {
        _ipAddressColumn = (GQIColumn<string>)args.GetArgumentValue(_ipAddressColumnArg);
        return default;
    }

    public void HandleColumns(GQIEditableHeader header)
    {
        // Add the new IP address rank column
        header.AddColumns(_ipAddressRankColumn);
    }

    public void HandleRow(GQIEditableRow row)
    {
        // Retrieve the IP address in the current row
        string ipAddress = row.GetValue(_ipAddressColumn);

        // Calculate its ranking
        int ranking = GetRanking(ipAddress);

        // Save it in the new IP address rank column
        row.SetValue(_ipAddressRankColumn, ranking);
    }

    private int GetRanking(string ipAddress)
    {
        // Parse the IP address into its constituent octets
        byte[] bytes = IPAddress.Parse(ipAddress).GetAddressBytes();

        // Combine the octects bitwise to achieve the desired sort order
        uint ranking = (uint)bytes[0] << 24 | (uint)bytes[1] << 16 | (uint)bytes[2] << 8 | bytes[3];
        return UnsignedToSigned(ranking);
    }

    private int UnsignedToSigned(uint ranking)
    {
        if (ranking > int.MaxValue)
            return (int)(ranking - int.MaxValue);
        else
            return (int)ranking - int.MaxValue;
    }
}

Step 2: Create a new custom operator to redirect sort operations

Create a new custom operator called SortRedirector and give it the display name "Redirect sort". In the code below, the necessary using statements have already been added. In the following steps, you will be adding the rest of the code.

using Skyline.DataMiner.Analytics.GenericInterface;
using Skyline.DataMiner.Analytics.GenericInterface.Operators;
using System.Linq;

[GQIMetaData(Name = "Redirect sort")]
public sealed class SortRedirector
{
    // The implementation will go here.
}

Step 3: Provide column arguments

In order to redirect from one column to another, you will need to know which columns. Implement the IGQIInputArguments interface to have life cycle methods in which you can define some custom arguments and retrieve their value.

Two arguments are needed:

• A column dropdown argument to select the column from which you want to redirect the sorting away.
• A column dropdown argument to select the column to which you want to redirect the sorting.

public sealed class SortRedirector : IGQIInputArguments
{
    // Fields to store the arguments
    private readonly GQIColumnDropdownArgument _fromArg;
    private readonly GQIColumnDropdownArgument _toArg;

    // Fields to store the argument values
    private IGQIColumn _fromColumn;
    private IGQIColumn _toColumn;

    // A constructor to initialize the arguments
    public SortRedirector()
    {
        _fromArg = new GQIColumnDropdownArgument("Redirect from column") { IsRequired = true };
        _toArg = new GQIColumnDropdownArgument("Redirect to column") { IsRequired = true };
    }

    // Life cycle method to define the arguments
    public GQIArgument[] GetInputArguments()
    {
        return new[] { _fromArg, _toArg };
    }

    // Life cycle method to retrieve the argument values
    public OnArgumentsProcessedOutputArgs OnArgumentsProcessed(OnArgumentsProcessedInputArgs args)
    {
        _fromColumn = args.GetArgumentValue(_fromArg);
        _toColumn = args.GetArgumentValue(_toArg);
        return default;
    }
}

Step 4: Provide the necessary dependencies

Since operators in GQI are immutable, you will need to create your own new instance of the sort operator if you want to modify the original one.

The way to do this is by using the Factory property on the OnInitInputArgs. This gives you access to the IGQIFactory interface that provides methods to construct a new sort operator.

So, in order to get access to the OnInitInputArgs, you need to implement the IGQIOnInit interface for your custom operator:

public sealed class SortRedirector : IGQIInputArguments, IGQIOnInit
{
    //...omitted for brevity

    // A field to store a reference to the IGQIFactory
    private IGQIFactory _gqi;

    // ...omitted for brevity

    public OnInitOutputArgs OnInit(OnInitInputArgs args)
    {
        // Save the factory in your local field for later use
        _gqi = args.Factory;
        return default;
    }
}

Step 5: Implement the sort redirection on a high level

Now that you are all set up, it is time to implement the main logic of your sort redirector. This logic will be triggered by the Optimize life cycle method of the IGQIOptimizableOperator interface.

The high-level optimization logic will go like this:

1. If the next operator is not a sort operator, just forward it.
2. Otherwise, if it is a sort operator, redirect it from the fromColumn to the toColumn.
3. Forward your redirected sort operator.

This is how you can implement this:

public sealed class SortRedirector : IGQIInputArguments, IGQIOnInit, IGQIOptimizableOperator
{
    //...omitted for brevity

    public IGQIQueryNode Optimize(IGQIOperatorNode currentNode, IGQICoreOperator nextOperator)
    {
        if (!nextOperator.IsSortOperator(out var sortOperator))
            return currentNode.Forward(nextOperator);

        var redirectedSortOperator = Redirect(sortOperator);
        return currentNode.Forward(redirectedSortOperator);
    }

    private IGQISortOperator Redirect(IGQISortOperator sortOperator)
    {
        // The redirect details still need to be implemented here.
    }
}

Tip

See also the following API references:

• IGQICoreBlock.IsSortOperator
• IGQIOperatorNode.Forward

Step 6: Implement the sort redirection details

It is now time to put the icing on the cake and finalize your sort redirector with the final details.

For this, it is important to know that a sort operator in GQI consists of sort fields, and that each sort field defines a sorting on a specific column together with a sort direction. So, for your redirection algorithm, you will need to consider every sort field separately, and keep the ones you do not care about intact.

The algorithm goes as follows:

1. If the sort operator contains no sort field for your fromColumn, you can return the original sort operator. No changes are required.

2. Otherwise, construct an array of redirected sort fields where each sort field is determined as follows:

   1. If the sort field is not for your fromColumn, keep it as it is.

   2. Otherwise, construct a new sort field for toColumn with the same sort direction.

3. Construct and return a new sort operator based on the redirected sort fields.

public sealed class SortRedirector : IGQIInputArguments, IGQIOnInit, IGQIOptimizableOperator
{
    //...omitted for brevity

    private IGQISortOperator Redirect(IGQISortOperator sortOperator)
    {
        // Check if you need to do some redirecting
        if (!sortOperator.Fields.Any(field => field.Column.Equals(_fromColumn)))
            return sortOperator; // No redirect necessary

        // Construct the redirected sort fields based on the original sort fields
        var redirectedFields = sortOperator.Fields.Select(field =>
        {
            if (!field.Column.Equals(_fromColumn))
                return field; // No redirect necessary

            return _gqi.CreateSortField(_toColumn, field.Direction);
        });

        // Construct and return a new sort operator based on the redirected sort fields
        return _gqi.CreateSortOperator(redirectedFields.ToArray());
    }
}

Tip

See also the following API references:

• IGQISortOperator.Fields
• IGQISortField.Column
• IGQIColumn.Equals
• IGQIFactory.CreateSortField
• IGQIFactory.CreateSortOperator

Step 7: Build a query using the new custom operator

Now that the implement is finished, you can test and use your sort redirector in a query:

1. Add the data source containing the IP addresses.

   This can be any CSV source, parameter table, etc.

2. Append the Rank IP address custom operator that creates the rank column if that column does not exist yet.

3. Append the Redirect sort custom operator:

   1. For the Redirect from column argument, select the IP address column.

   2. For the Redirect to column argument, select the IP address rank column.

4. Append a sort operator that sorts the query on the IP address column.

   Note

   This sort operator does not have to be added statically. It can also be added when a user sorts by e.g. clicking the table column header in a table visualization.
