Utah Scientific 100 X

About

The Utah Scientific 100 X is a compact HD/SDI router that is compliant with the various SDI formats: SD-, HD- and 3G-SDI (SMPTE 259M, 292M, and 424M). It comes in different models, with a routing capacity of 8x8 or 16x16. It also allows you to route inputs to outputs across different levels.

With this connector, you can monitor and control the router using a matrix view.

Key Features

  • Monitor device health: Get a quick overview of device health.
  • Monitor your routing configuration: Keep track of the connection between sources and destinations.
  • Configure routing: Connect or disconnect crosspoints between sources and destinations of the router.

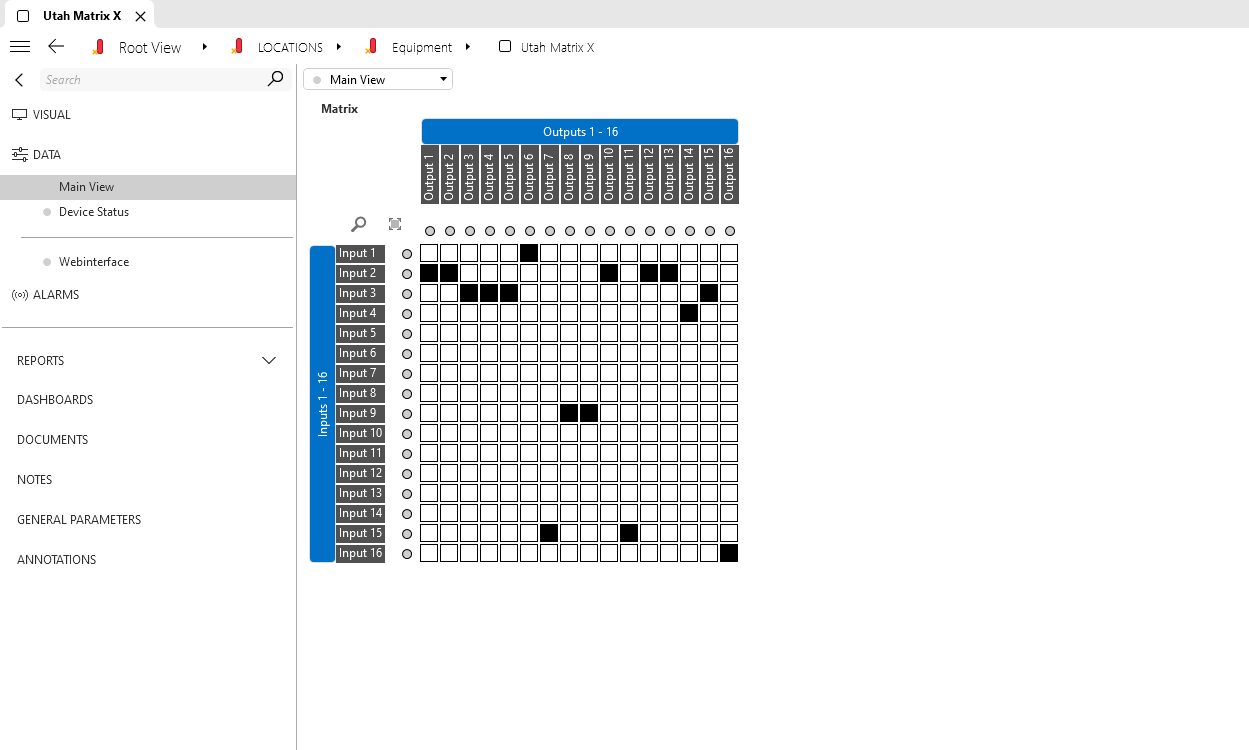

Main View

Technical Reference

Note

For detailed technical information, refer to our technical documentation.
