Creating a completely new dashboard

To learn how to create a dashboard, you can follow the steps below or watch this short video, which shows you how to create a simple dashboard to monitor system health:


  1. On the home page, in the upper-right corner, click the downward arrow next to Add and select Dashboard. Prior to DataMiner 10.5.0 [CU11]/10.6.2, select Start with a new blank dashboard.

    Add new dashboard
    Dashboards app in DataMiner 10.6.3

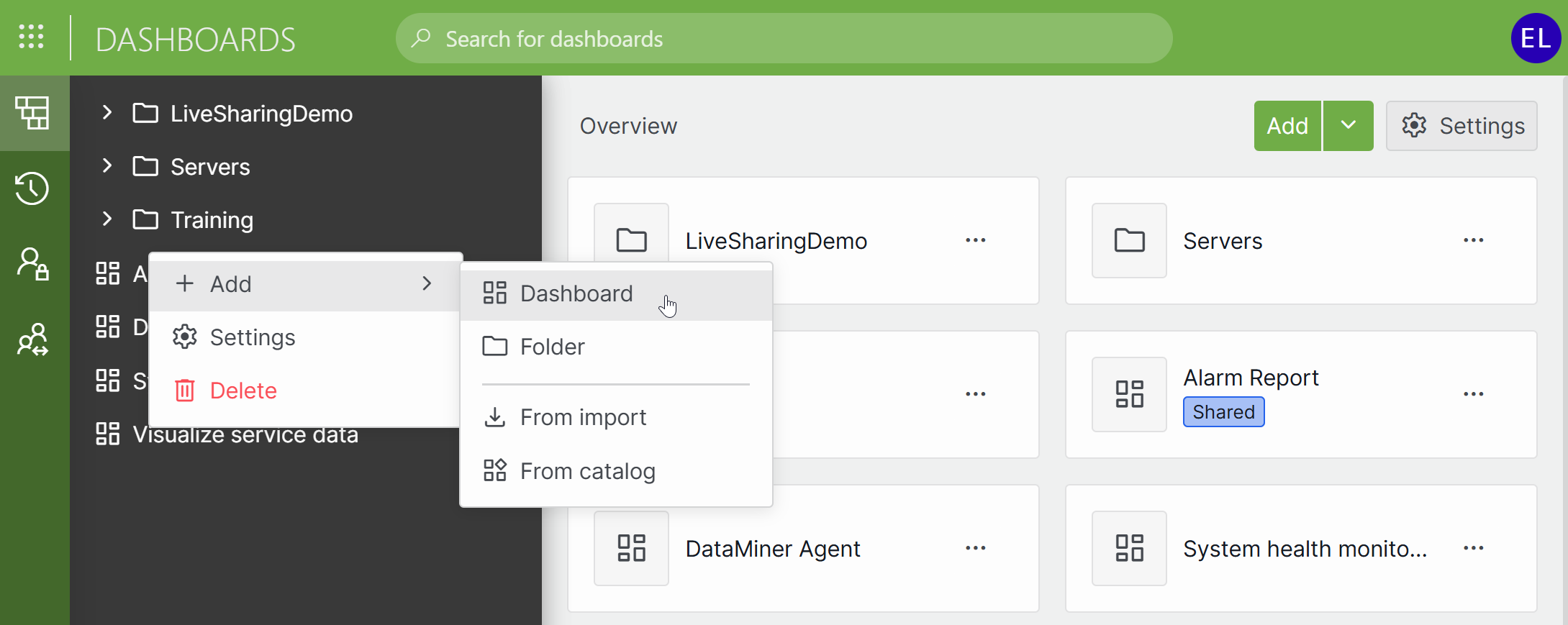

    Alternatively, if you want to add a dashboard to a specific folder, right-click the folder in the sidebar to the left and select Add > Dashboard or Create dashboard (prior to DataMiner 10.5.0 [CU11]/10.6.2).

    Add dashboard to folder
    Dashboards app in DataMiner 10.6.3

  2. Enter the name of the dashboard.

  3. To specify the folder that should contain the dashboard, specify the folder name in the Location box, or select the folder in the tree view below this box.

    If you created a dashboard by right-clicking a folder in the list, this folder will automatically be selected.

    You can also create folders at this point in the dashboard creation, by hovering the mouse pointer over the folder in the tree view where you want to create a folder and clicking the + icon. Then specify the folder name and click the check mark icon.

  4. In the Security box, select whether other users should be able to view and edit the dashboard.

    Security level
    Setting dashboard security level in DataMiner 10.4.5

    Note
    • Once the dashboard has been created, you can further refine which users have which level of access in the dashboard options. See Changing dashboard settings.
    • The built-in Administrator account always has full access to all dashboards.

  5. Click Create or OK, depending on your DataMiner version.

  6. Optionally, fine-tune the dashboard settings. See Changing dashboard settings.

  7. Optionally, fine-tune the dashboard layout. See Configuring the dashboard layout.

  8. Configure the necessary components. See Configuring components.

  9. When the dashboard is ready, in the upper-right corner of the screen, click the “x” icon.

Note

The following characters are not allowed in the name of a dashboard or dashboard folder: / \ : ; * ? < > | °

If you do specify a backslash (“\”) in a folder name, this will not become part of the folder name. Instead, a subfolder will be created, with the characters after the backslash as its name.

💡 TIPS TO TAKE FLIGHT
Now that you know how to create a dashboard, you may be interested in reading our instructions on sharing a dashboard with others.
