Launching and attaching interactive Automation scripts

This guide explains how to reliably launch an interactive Automation script in different scenarios.

Launching a script directly (from the Cube UI)

If you want a script to show the UI when user interaction is required:

If possible, set the Interactivity element in the script XML:
- Always: The script will always show the UI.
- Optional: The UI is only shown when necessary.
- Auto (default): Automatic detection is used.

  Note

  The Interactivity element is supported from DataMiner 10.5.9/10.6.0 onwards. Older versions always use automatic detection.
If you rely on automatic detection:
- Make sure UI calls (e.g. engine.ShowUI) are clearly present in the code.
- If a framework wraps ShowUI, add a hint comment (e.g. // engine.ShowUI).

This is why:

Automatic detection scans the script for UI usage. If it cannot detect this, the session will not be interactive, and the script will fail to run.
The Always and Optional options avoid detection pitfalls by explicitly defining behavior.

Launching a script from non-UI contexts (Scheduler, Correlation, QAction, other non-interactive scripts)

If you want to show the UI to an active Cube user when prompted, use the following configuration:

if (!engine.FindInteractiveClient("Scheduled task requires operator input to proceed.", timeoutSeconds))
{
    engine.ExitFail("No interactive client attached within the timeout. Aborting.");
}

This is why:

Non-UI contexts (e.g. Scheduler) are not users. The script cannot show them the UI.

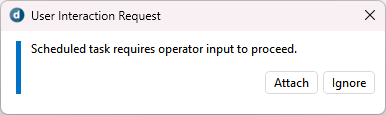

FindInteractiveClient lets a user attach to the script. All active users are shown a message to attach to the script. The first user to click Attach sees the UI.

Important

FindInteractiveClient will not work for a user connected to a web session.

Auto-attaching a script to specific users from non-UI contexts

If you want a script to automatically attach to specific users without prompting, there are several possibilities, as illustrated by the following examples:

Example: Attach immediately to users in specified groups.

engine.FindInteractiveClient(String.Empty, timeoutSeconds, "Operators;PowerUsers", AutomationScriptAttachOptions.AttachImmediately);

Example: Attach immediately to a specific user by username.

engine.FindInteractiveClient(String.Empty, timeoutSeconds, "user:JohnSmith", AutomationScriptAttachOptions.AttachImmediately);

Example: Attach immediately to a specific Cube session by user cookie.
```
engine.FindInteractiveClient(String.Empty, timeoutSeconds, "userCookie:C57D3BEFAD4F445B9BC37B9FAFB84ADB", AutomationScriptAttachOptions.AttachImmediately);
```
Note

Each Cube session has its own cookie. Use the cookie to target the right session, because a user might have several Cube sessions on different devices. See Retrieving user cookies.

Retrieving user cookies

A QAction that was triggered by a user clicking on a button parameter will know the cookie of that user:

string id = protocol.UserCookie;
// Formats may vary, e.g.:
// C57D3BEFAD4F445B9BC37B9FAFB84ADB
// 39D49F3E377C4B6D94AF5F4731C8052D:NO_INFORMATION
// {448BB4B8-4E55-4CB7-BCC3-848923BD19DA}:AUTOMATION:Automation script:581/120:John Smith

From an Automation script started by a user:

string id = engine.UserCookie;

From an SLNet connection:

Guid id = protocol.GetUserConnection().ConnectionID;
// example: 448BB4B8-4E55-4CB7-BCC3-848923BD19DA
// Note: protocol.SLNet and Engine.SLNetRaw cookies are process-associated, not user-associated.

Launching a script as a specific user

If you want to run a script as if launched by a specific user, so no extra script parameter is needed to pass a user cookie, there are several possibilities:

Attach to the same user:

engine.FindInteractiveClient(String.Empty, timeoutSeconds, $"user:{engine.UserLoginName}", AutomationScriptAttachOptions.AttachImmediately);

Attach via cookie:

engine.FindInteractiveClient(String.Empty, timeoutSeconds, $"userCookie:{engine.UserCookie}", AutomationScriptAttachOptions.AttachImmediately);

Start the script via SLNet and pass the user cookie:

var executeScriptMessage = new ExecuteScriptMessage
{
    ScriptName = "my interactive script",
    Options = new SA(new[]
    {
        "EXTENDED_ERROR_INFO",
        "DEFER:TRUE",
        $"USER:{userCookie}",
    }),
};

connection.SendSingleResponseMessage(executeScriptMessage);
